Thin anchor nuts
Thin anchor nuts can be use in wide range of applications and are designed to
provide a very efficient and cost-effective method of placing permanent threads
in thin materials. Installed from one side, thin anchor nuts are perfect for use
in metal, fiberglass and rigid plastic previously too thin for tapped threads.
Thin anchor nuts provide a nearly flush appearance and once in place, the
internal threads are ready for a screw or bolt.
Lightweight tooling assures easy installation by the
operator and reduces costs when compared with other methods. After installation,
thin anchor nuts provide permanent, captive threads that resist high loads, do
not allow loosening under vibration and will not rotate when attached to the
mating material.
Available as an
assortment
Thin anchor nuts specification:
| Thread Size |
Body Diameter |
Head Diameter +-.015 |
Body Length +-.015 |
Grip Range |
Hole Size |
Drill Size |
||
| Min | Max. | Min. | Max. | |||||
| 6-32 | .249 | .287 | .410 | .020 | .080 | .250 | .254 | 1/4" |
| 8-32 | .249 | .287 | .410 | .020 | .080 | .250 | .254 | 1/4" |
| 10-24 | .280 | .320 | .465 | .020 | .130 | .281 | .285 | 9/32" |
| 10-32 | .280 | .320 | .465 | .020 | .130 | .281 | .285 | 9/32" |
| 1/4-20 | .374 | .415 | .610 | .030 | .165 | .375 | .379 | 3/8" |
| 5/16-18 | .499 | .540 | .720 | .030 | .165 | .500 | .504 | 1/2" |
| 3/8-16 | .499 | .540 | .720 | .030 | .165 | .500 | .504 | 1/2" |
Note: Hole size is critical for
proper installation
3

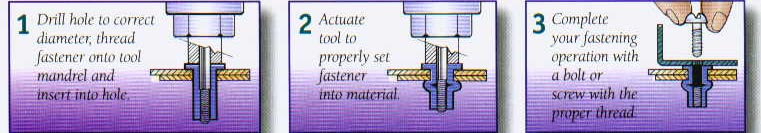

Easy Steps for Installation
|
U21 |
